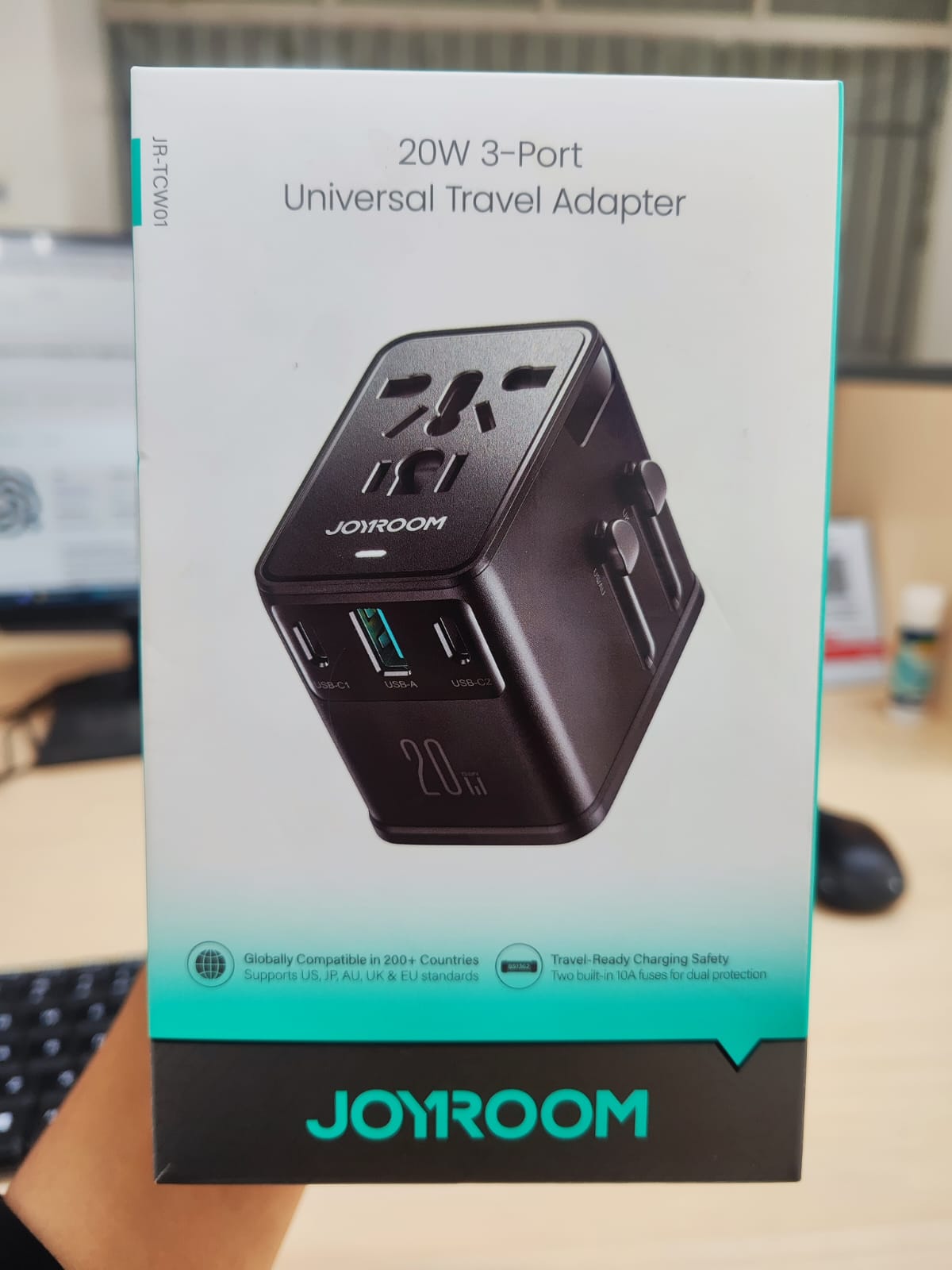

JOYROOM TCW01 20W 3-Port Universal Travel Adapter-Black

Description

The JOYROOM TCW01 20W 3-Port Universal Travel Adapter-Black is the definitive solution for the modern globetrotter, offering a seamless blend of safety, versatility, and high-speed charging in a single, compact unit.

1. Global Connectivity with the JOYROOM TCW01 20W 3-Port Universal Travel Adapter-Black

The JOYROOM TCW01 20W 3-Port Universal Travel Adapter-Black is engineered to be your “one-stop” charging hub regardless of your destination. It features an ingenious slide-out plug system that covers over 200 countries and regions. Whether you are navigating the streets of London, the business districts of Tokyo, or the coastal towns of Australia, this adapter ensures that your laptops, smartphones, and tablets remain fully functional.

2. Technical Specifications

The performance of the JOYROOM TCW01 20W 3-Port Universal Travel Adapter-Black is defined by its ability to handle varying voltages while providing a stable 20W output for fast charging.

Power & Input

• Model: JR-TCW01

• Rated Voltage: 100-250V~ 50/60Hz

• Rated Current: 10A Max

• Rated Power: 2500W Max

• Fuse Rating: 10A (Dual fuse system for added safety)

Output Ports (Fast Charging)

• USB-C Output: 5V=3A, 9V=2.22A, 12V=1.67A (20W PD Max)

• USB-A1 Output: 5V=3A, 9V=2A, 12V=1.5A (18W QC Max)

• USB-A2 Output: 5V=2.4A (12W Max)

• Total Multi-port Output: 5V=3A (15W Max)

Physical Build

• Material: Fire-retardant PC (V0 Rating)

• Dimensions: 70 x 50 x 52 mm

• Weight: 148g

• Color: Midnight Black

3. Innovative Features of the JOYROOM TCW01 20W 3-Port Universal Travel Adapter-Black

This is not a standard “dumb” adapter. The JOYROOM TCW01 20W 3-Port Universal Travel Adapter-Black incorporates smart circuitry to protect your expensive electronics from the unpredictable power grids often found in international travel.

• Triple-Device Charging: Equipped with one USB-C port and two USB-A ports, you can charge your smartphone, smartwatch, and wireless earbuds simultaneously from a single wall outlet.

• 20W Power Delivery (PD): The dedicated USB-C port supports PD 3.0, allowing an iPhone to reach 50% battery in just 30 minutes—a crucial feature when you only have a short layover at an airport.

• Broad Compatibility: Beyond just electronics, the high 2500W power rating allows you to use standard travel appliances like hair dryers (up to 10A), electric shavers, and cameras.

• Smart Recognition Chip: The internal IC identifies the connected device and automatically adjusts the current to provide the most efficient charge possible.

4. Safety Standards and Construction

When dealing with international electricity, safety is paramount. The JOYROOM TCW01 20W 3-Port Universal Travel Adapter-Black is built with multiple layers of defense to prevent electrical hazards.

• Dual Fuse Design: It comes with a built-in 10A fuse and a spare fuse tucked inside the chassis. If a power surge occurs, the fuse blows to protect your device, and you can swap it instantly to keep moving.

• Safety Shutters: Every socket is equipped with child-proof safety shutters to prevent the accidental insertion of foreign objects.

• Fire-Resistant Materials: The body is constructed from high-quality V0-rated fireproof PC material that can withstand extreme temperatures.

• Certifications: The device is fully certified by CE, FCC, and RoHS, meeting all international safety and environmental standards.

5. Global Plug Compatibility Guide

The JOYROOM TCW01 20W 3-Port Universal Travel Adapter-Black utilizes four distinct plug types to ensure universal coverage:

Plug Type	Region Coverage
US Type	USA, Canada, Japan, Taiwan, Mexico
UK Type	United Kingdom, Hong Kong, Singapore, Malaysia, UAE
EU Type	Germany, France, Italy, Spain, South Korea, Greece
AU Type	Australia, New Zealand, China, Argentina

6. Maintenance and Travel Tips

To ensure your JOYROOM TCW01 20W 3-Port Universal Travel Adapter-Black lasts for years of adventure, keep these tips in mind:

1. Check Local Voltage: While the adapter handles 100-250V, it is not a voltage converter. Ensure your appliance (like a 110V hair straightener) is dual-voltage or compatible with the local grid (220V-240V).

2. Slide Mechanism: Always ensure the locking button is fully engaged when sliding a plug out to ensure a stable connection in the wall.

3. Clean Contacts: Occasionally wipe the metal prongs with a dry cloth to ensure optimal conductivity.
