JOYROOM JR-QP193 22.5W 30000mAh Digital Display Fast Charging Powar Bank

Description

In the modern digital era, staying connected is a necessity, not a luxury. Whether you are a frequent traveler, a professional working on the go, or a gamer, the JOYROOM JR-QP193 22.5W 30000mAh Digital Display Fast Charging Power Bank is engineered to be your ultimate energy companion. This powerhouse combines a massive battery capacity with advanced charging protocols to ensure your devices never run out of juice.

1. Introduction to the JOYROOM JR-QP193 22.5W 30000mAh Digital Display Fast Charging Power Bank

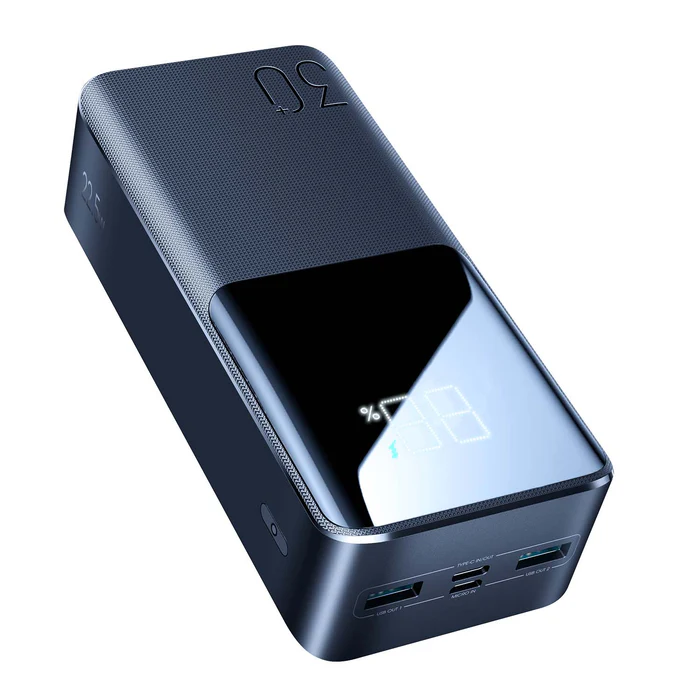

The JOYROOM JR-QP193 22.5W 30000mAh Digital Display Fast Charging Power Bank is a high-performance portable charger designed for users who require multi-day power. With its sleek 3D laser-etched texture and a prominent LED display, it balances aesthetics with functional utility. It supports a wide array of fast-charging standards including Power Delivery (PD) and Quick Charge (QC), making it compatible with the latest smartphones from Apple, Samsung, Huawei, and Google.



2. Technical Specifications

The performance of the JOYROOM JR-QP193 22.5W 30000mAh Digital Display Fast Charging Power Bank is backed by rigorous technical parameters:

• Model: JR-QP193

• Battery Type: Lithium Polymer (Li-Po)

• Nominal Capacity: 30,000mAh / 3.7V (111Wh)

• Rated Capacity: 18,000mAh (at 5V=3A)

• Energy Conversion Rate: $\geq 80\%$

• Dimensions: 150 x 69 x 41 mm

• Weight: Approximately 628g

• Material: ABS + PC Fireproof Plastic

Input Parameters (Recharging the Power Bank)

• Micro-USB Input: 5V=2A, 9V=2A, 12V=1.5A

• USB-C Input: 5V=3A, 9V=2A, 12V=1.5A

Output Parameters (Charging Devices)

• USB-C Output: 5V=3A, 9V=2.22A, 12V=1.67A (Max 20W PD)

• USB-A 1/2 Output: 4.5V=5A, 5V=4.5A, 5V=3A, 9V=2A, 12V=1.5A (Max 22.5W)

• Total Multi-port Output: 5V=3A (Max)

3. Key Features of the JOYROOM JR-QP193 22.5W 30000mAh Digital Display Fast Charging Power Bank

Massive 30,000mAh Battery Capacity

With 111Wh of energy, this power bank can charge an iPhone 13 or 14 approximately 6.6 times, a Samsung Galaxy S22 over 6 times, and an iPad Mini nearly 4.5 times. It is ideal for long-distance business trips, camping, or emergency power outages.

Multi-Protocol Fast Charging

The unit supports a comprehensive range of fast-charging protocols:

• PD 3.0 (Power Delivery): Optimized for iPhones and modern laptops.

• QC 3.0 (Quick Charge): Standard for many Android devices.

• SCP (SuperCharge Protocol): Specifically for Huawei high-speed charging.

• AFC & FCP: For Samsung and older Huawei devices.

Smart Digital LED Display

Unlike traditional power banks that use four tiny LEDs to guess remaining juice, this device features a large percentage-based digital readout. It provides a real-time, precise status of the remaining power, so you know exactly when it’s time to recharge the bank itself.

4. Advanced Safety and Build Quality

Safety is a core priority for the JOYROOM JR-QP193 22.5W 30000mAh Digital Display Fast Charging Power Bank. The device is built with high-density fireproof materials and features a multi-layer protection system:

• Over-Current Protection: Prevents excessive current from damaging device circuits.

• Over-Voltage Protection: Shields your smartphone from voltage spikes.

• Short-Circuit Protection: Automatically cuts off power in the event of a short.

• Over-Charge/Discharge Protection: Preserves the longevity of the internal Li-Po cells.

• Temperature Control: NTC thermistors monitor heat levels to ensure the device operates within safe thermal limits.

5. Usage and Maintenance Tips

To maximize the lifespan of your power bank, follow these guidelines:

1. Initial Charge: Charge the device to 100% before your first use.

2. Cable Quality: Always use the original cable or a certified third-party MFi/E-Mark cable to ensure the 22.5W speeds are achieved.

3. Storage: If not in use for a long time, maintain the battery level between 50% and 70% and store it in a cool, dry place.

4. Avoid Extremes: Do not expose the unit to temperatures above 45°C or leave it in a hot car.

Feature	Performance Detail
Port Count	4 Ports (2x USB-A, 1x USB-C, 1x Micro-USB)
Max Output	22.5W Super-Fast Charging
Simultaneous Charging	Up to 3 devices at once
Certification	CE, FCC, RoHS, UN38.3
